TMX Series: The "All-Round Champion" of Precision Machining

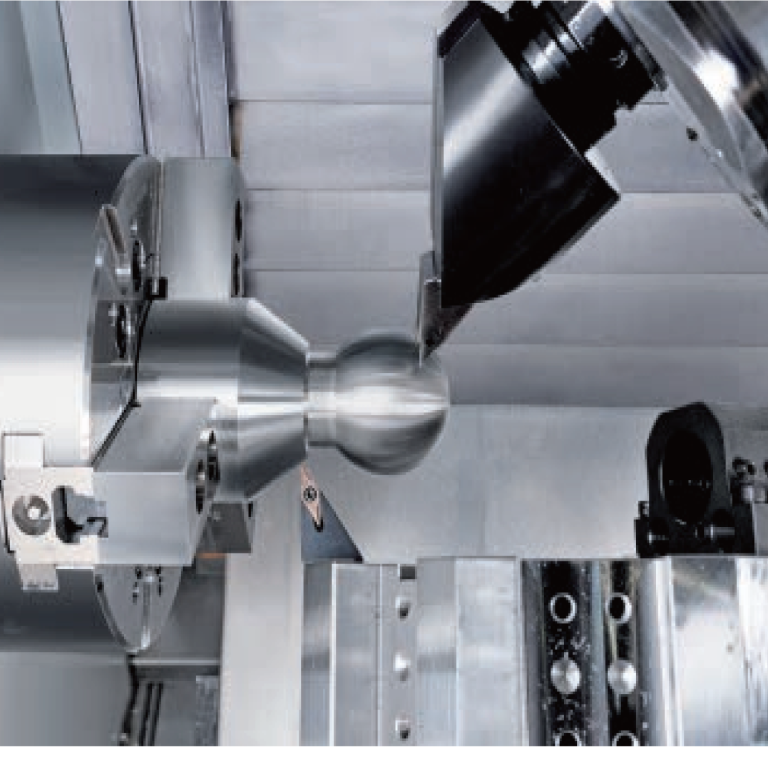

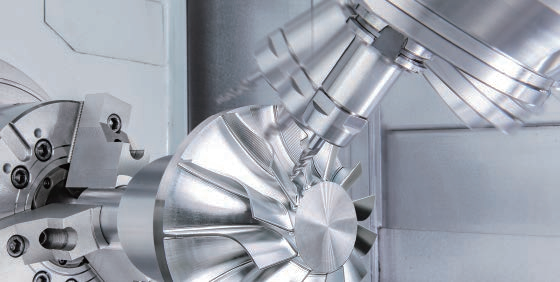

While traditional machining still wastes time switching between multiple machines, the TMX Series breaks this limitation with integrated multi-tasking capabilities: Its "tri-spindle synergy" (main motorized spindle + counter spindle + milling spindle), paired with the tool magazine’s parallel tool changing, enables complex workpieces to be completed in a single setup—from curved surface turning to high-precision milling, even multi-face machining of irregular parts, all efficiently handled on this one machine.

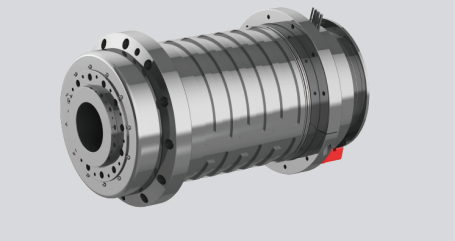

MOTORIZED SPINDLE
The main spindle is powerful motorized
spindle A2-8 /A2-11 spindle, with 39-42kW and torque 600-1600Nm,
It has the high performance.m

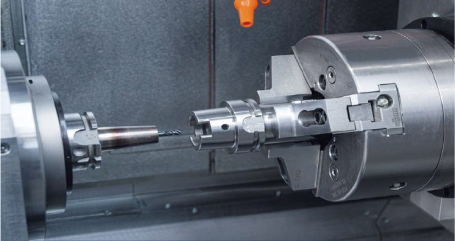

COUNTER SPINDLE
/motorized spindle
/ A2-8:39kW,600Nm;
A2-11:42kW,1600Nm
/speed: A2-8: 3500rpm;

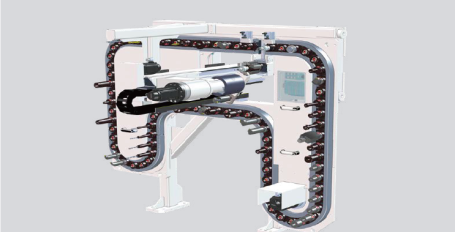

TOOL MAGAZINE
/ Chain magazine with 40 (60) tool holders
/ Space-saving integration into the basic
machine
/ Can be loaded in parallel with the machining process
1、MACHINE BED
/Single-piece machine design
/ Mineral casting/HT300 casting
2、ROLLER GUIDES
/In all linear axes
/Large distance between the guides
3、MAIN SPINDLE
/ Large speed range
/ C-axis for milling operations
/ Additional holding brake
/ A2-8 /A2-11
3、COUNTER SPINDLE
/ Large speed range
/ C-axis for milling operations
/ Additional holding brake
/ A2-8 spindle connection
5、MILLING SPINDLE
/ Sauter powerful milling spindle 37 kW
/ Large speed range 0 - 12000 rpm
/ Water-cooled motor spindle with HSK-T63
/ Internal and external coolant supply
/ B-axis position can be fixed in any position
6、TOOL TURRET
/BMT55-12T live turret
7、TOOL MAGAZINE
/ Chain magazine with 40 (60) tool holders
/ Space-saving integration into the basic machine
/ Can be loaded in parallel with the machining process

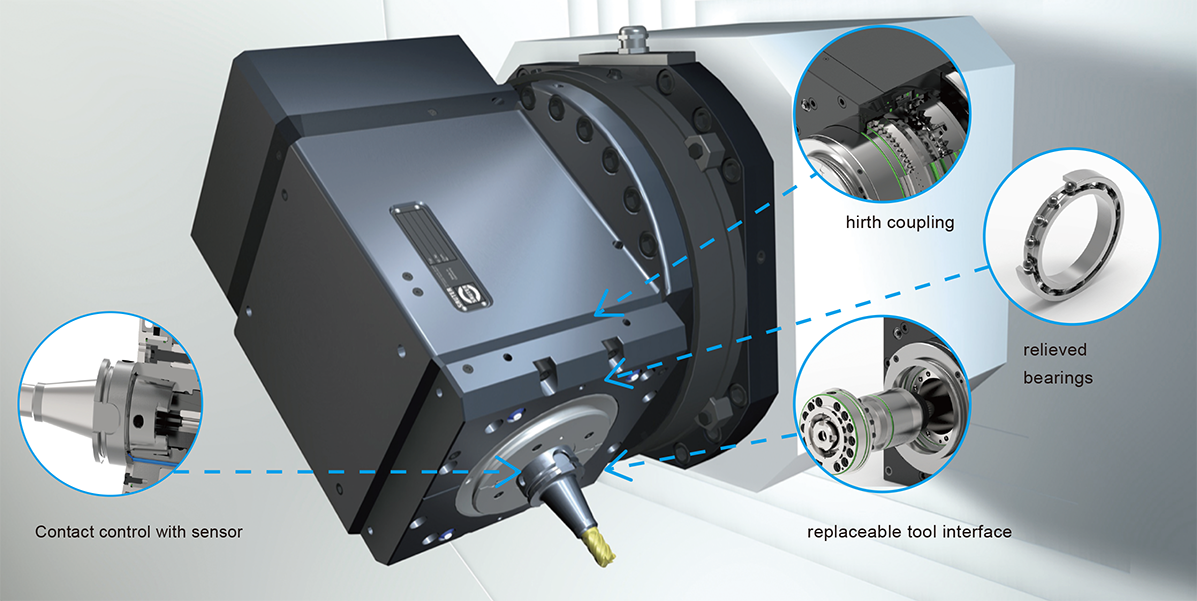

Sauter Motroized Spindle
▪Sauter Motroized Spindle
▪Contact control with sensor for perfect fit of the tooling .
▪Replaceable tool interface.
▪Increased bearing life with spindle bearing relief during tuming process .
▪For turning and milling operations.
▪Available with tool systems HSk, Capto and Kennametal.
▪Blowing air at each tool change takes away the chips
▪High perfomance with a torque up to 450 Nm and a speed up to 20.000 min-1
▪Available from size 40-size 100
OPTIONS

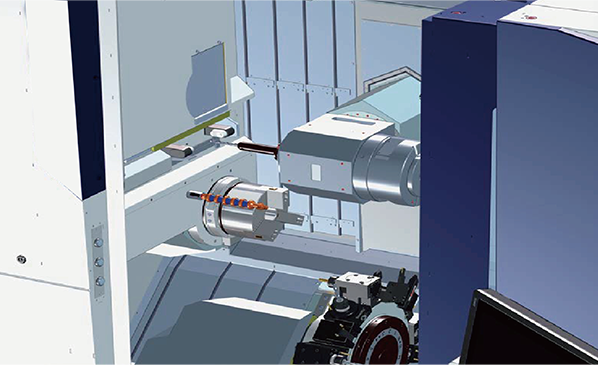

WORKPIECE PICK-UP DEVICE / SMALL GANTRY
Equipped with two NC axes and available as an option, the small gantry makes it possible to remove the finished parts from the counter spindle and the remaining bar material from the main spindle. The finished parts are carefully placed onto an accumulation conveyor. Max. part size: ø 100 x 400 mm; max. part weight: 10 kg
TOOL MEASUREMENT
The laser measuring system located above the main spindle performs contactless and process-reliable measuring and monitoring processes for the rotating tools in the milling
spindle.Stationary tools (turning tools) are measured by a probe.

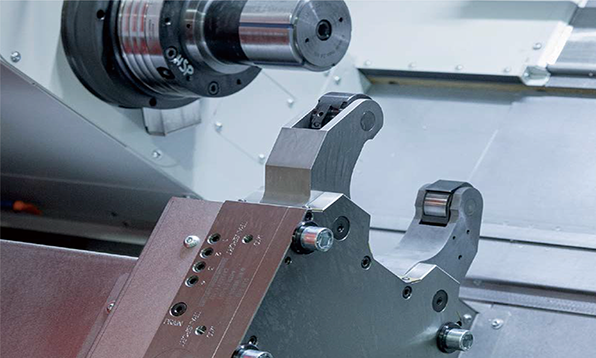

CNC STEADY REST
Several steady rests are available for shaft machining. Small shaft parts can be supported with a turret-mounted steady rest.

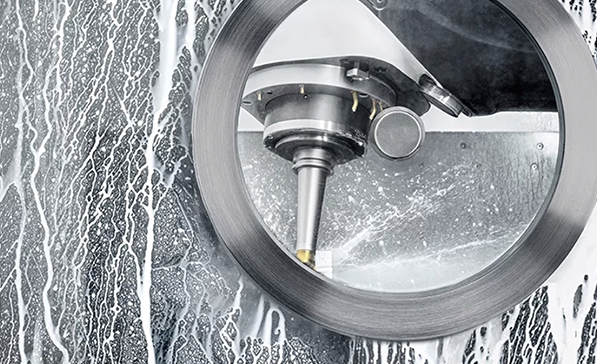

SPINNING WINDOW
Self-cleaning spinning window which provides an unobstructed view of the manufacturing process.

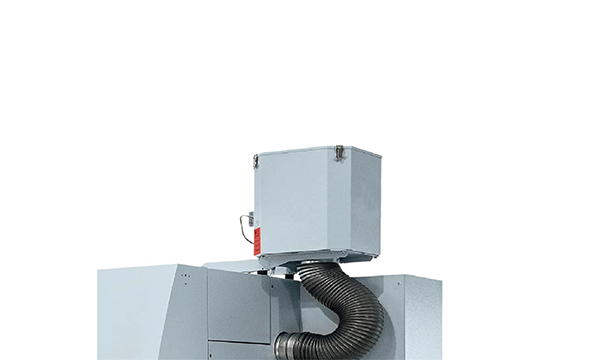

OIL MIST SEPARATOR
The mechanical oil mist separator cleans the aerosols which
are generated in the workroom during the machining process.

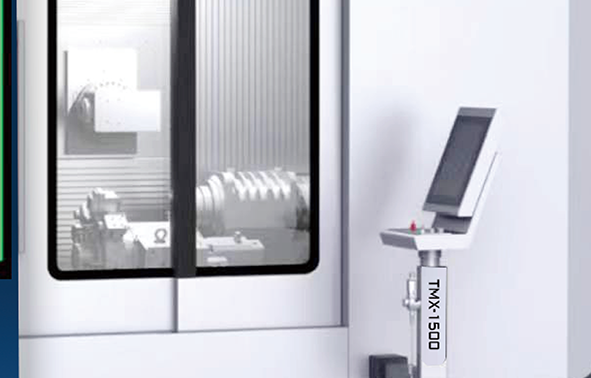

AUTOMATIC DOOR
Offering maximum comfort for manual workpiece loading,
the fully automatic machine door is also the prerequisite for automatic, robot-assisted loading.
