TCP-Series

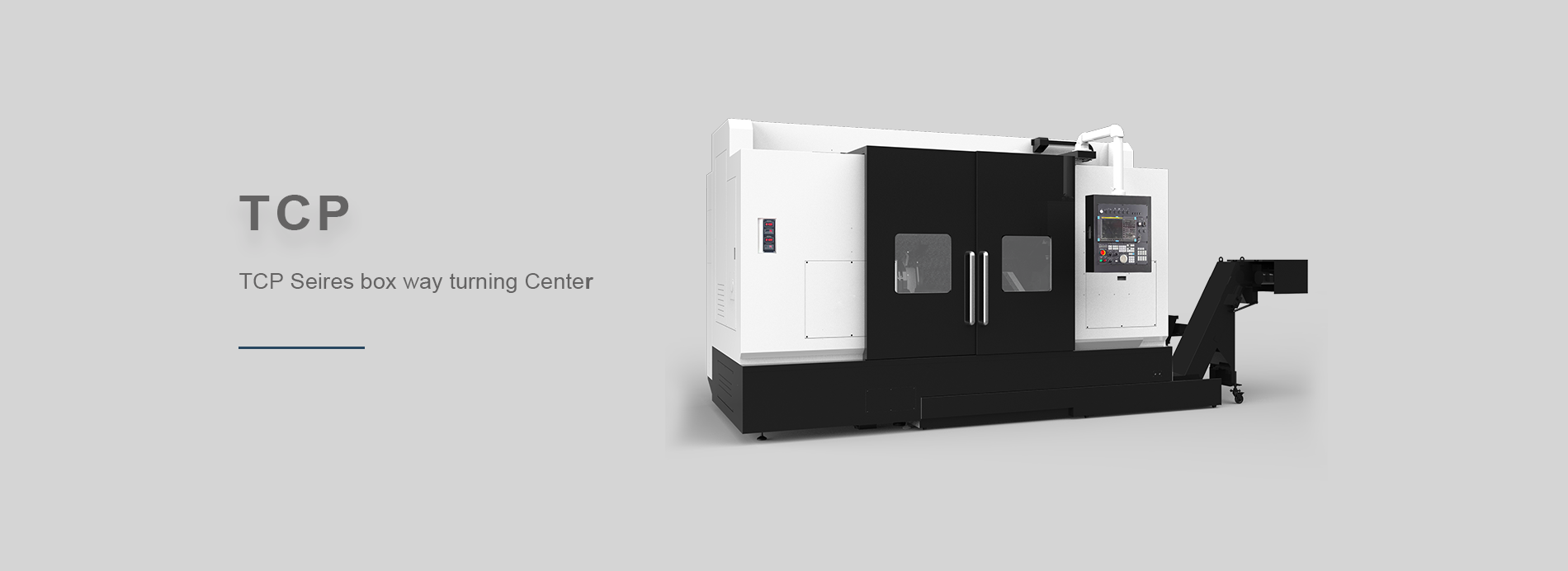

Box way turning Center  TCP

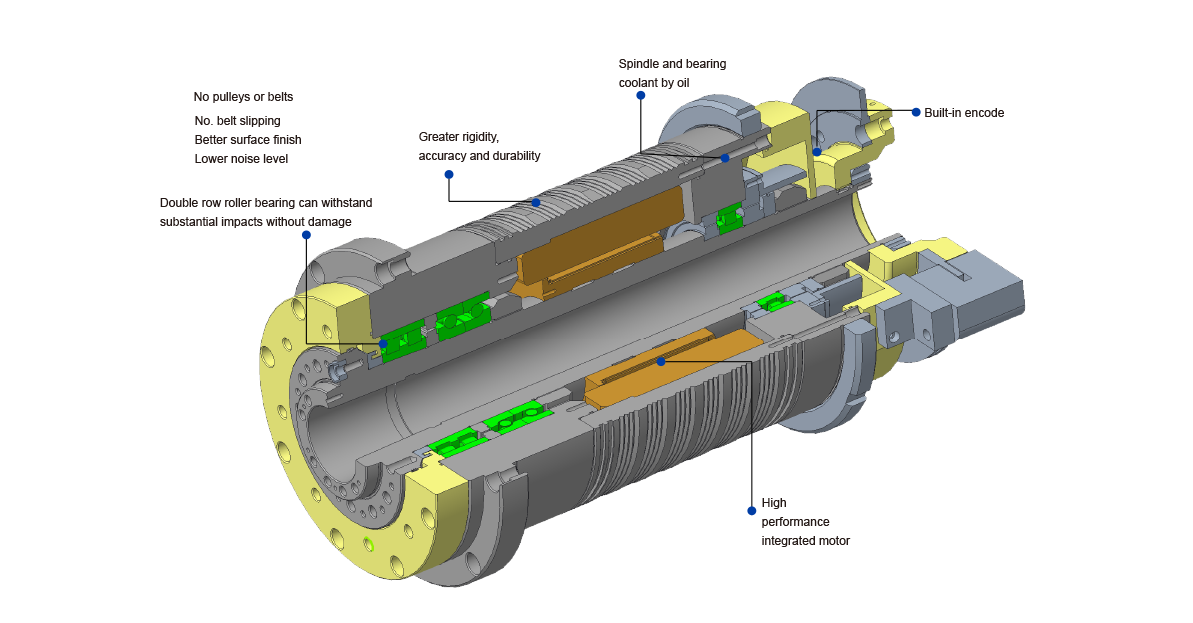

In the field of precision manufacturing, efficiency and accuracy are eternal pursuits. The TCP Hard Rail Turning-Milling Compound Machining Center, with its widened and extended structure, redefines processing standards with exceptional performance, safeguarding your production.  Featuring ultra-hard material guide rails precision-ground for superior rigidity and high load capacity, it effortlessly handles heavy-duty cutting conditions. Even during prolonged high-intensity machining, it maintains stable operational precision, ensuring consistent part quality.  Equipped with a high-performance electric spindle unit, it offers a wide speed range and robust power output, achieving the perfect balance between high-speed cutting and heavy-load machining. Whether tackling complex surface processing or high-precision hole machining, it delivers exceptional performance, significantly improving processing efficiency.

MAXIMUM STRENGTH CONSTRUCTION

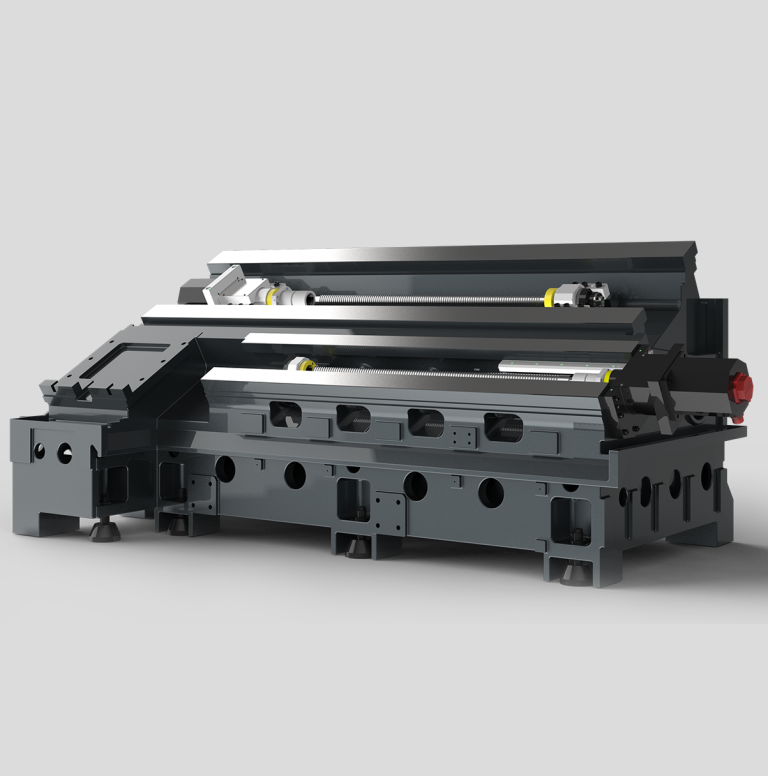

MThe main machine components are integrated into a strong foundation, andthe low center of gravity 30° positive bed design provides a stable base for theheadstock, turret, and tailstock.
Finite element analysis (FEM) was used to optimize the reinforcement ribs of theunibody bed, increasing the mechanical strength by 40% compared to conven-tional designs. Therefore, the TC series can be used for heavy cutting and main-tain high accuracy for a long period of time, and the high rigidity of the machineextends the service life of the machining tools.


Y-axis motion

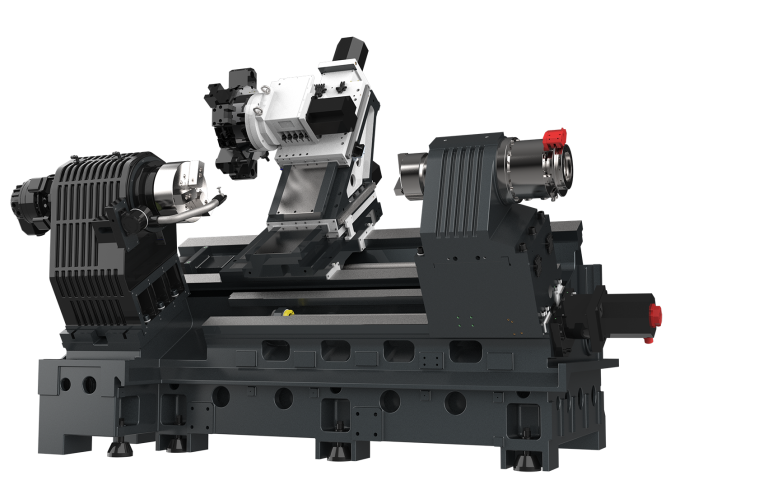

High torque, power tool machining and servo driven c-axis linkage .Perform turning workpieces ; Radial and axial drilling, boring, tapping and slotting

BMT power turre

Features: quick tool change function, power tool
independent drive,high rigidity mechanical
structure, radial mounting tool holder.

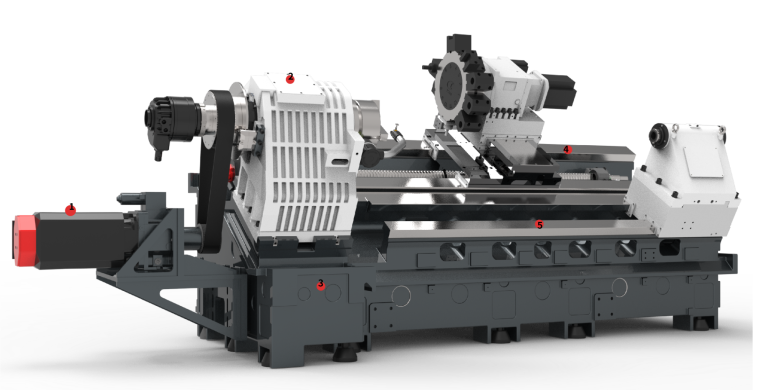

1、Gear box, high torque output

2、The cast base, optimized through FEM (Finite Element Method) analysis, delivers superior vibration-damping performance and exceptional cutting capability

3、Integrate spindle with enlarge bearing

4、The X/Z axis widened span design ensures smooth operation of the saddle during cutting movements

5、The rails undergo high-frequency induction hardening,creating a hardened layer that is tough internally and hard externally, resulting in exceptional wear resis-tance.Further refined through precision grinding, the machine delivers extremely high accuracy and stability during turning.

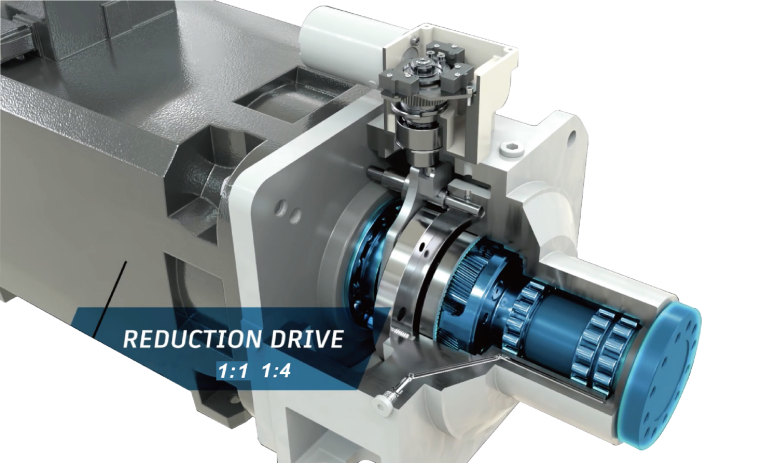

Two-Speed gearbox

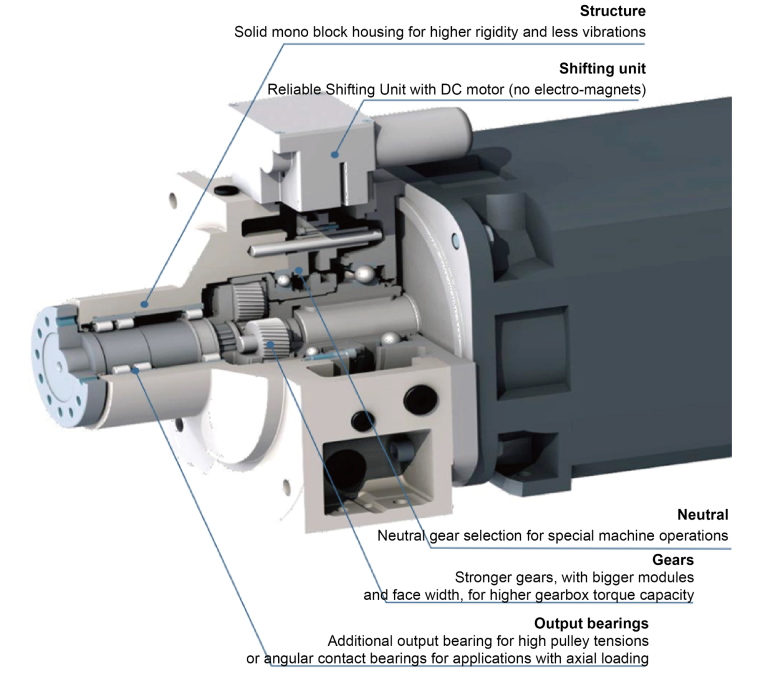

The two-speed gearbox can provide plenty of power for high torque output at low speeds, especially suitable for the processing needs of various types of tough materials and large-size workpieces.

TCP750/1000/1500/2000Seires

TCP-750Seires

Max.swing over bed:700

Max.turning diameter:560mm

Max.turning length:800

Spindle:A2-8 (A2-6)

Spindle speed:2500

TCP-1000Seires

Max.swing over bed:700

Max.turning diameter:560mm

Max.turning length:1050

Spindle:A2-8 (A2-6)

Spindle speed:2500

TCP-1500Seires

Max.swing over bed:700

Max.turning diameter:560mm

Max.turning length:1550

Spindle:A2-8 (A2-11)

Spindle speed:2500

TCP-2000Seires

Max.swing over bed:700

Max.turning diameter:560mm

Max.turning length:2050

Spindle:A2-8 (A2-11/15)

Spindle speed:2500(1600/1000)
