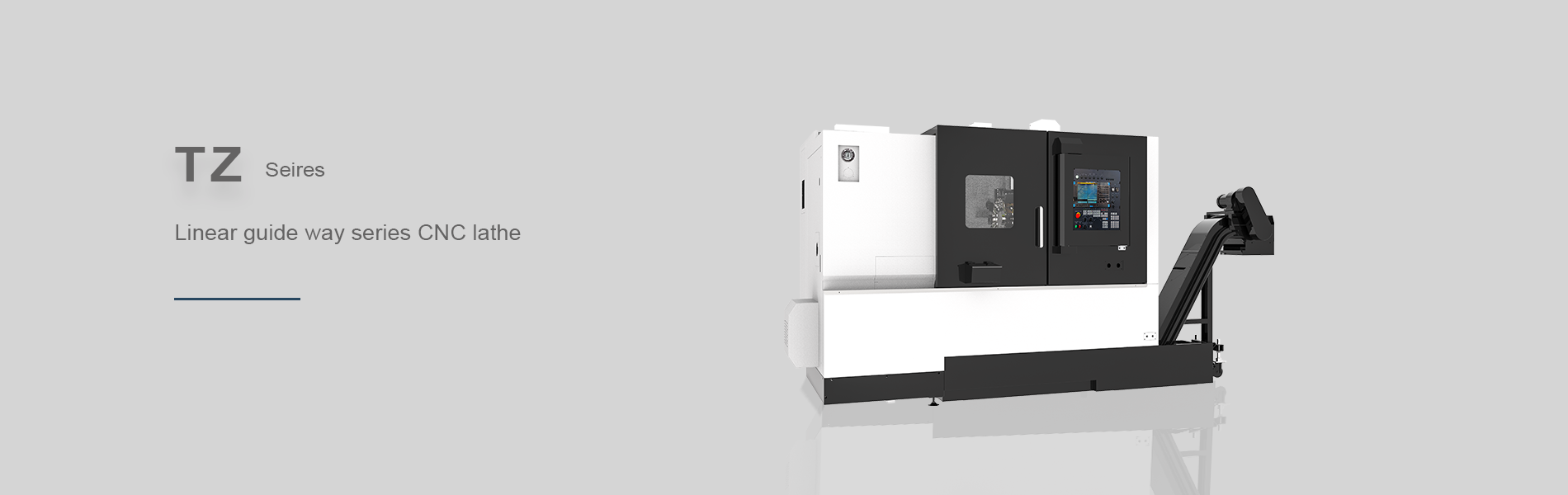

Linear guide way series
The high-precision turning center of the linear guide way serieshas a strong rigid structure and can resist thermal shockdesign.the whole series combine power, strength, speed andvarious types of spindle, turret and tailstock configurations,andprovide high-precision peripheral options.
MAXIMUM STRENGTH CONSTRUCTION

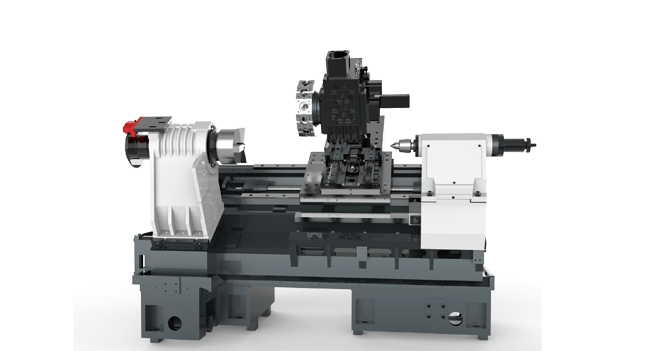

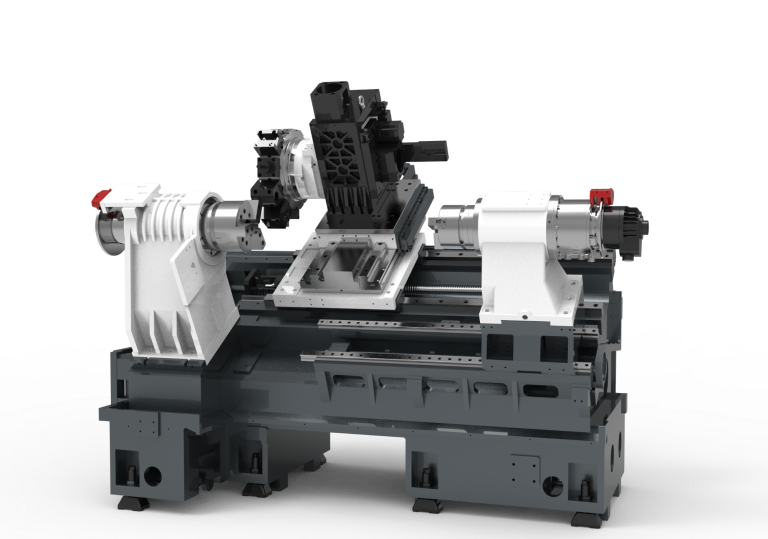

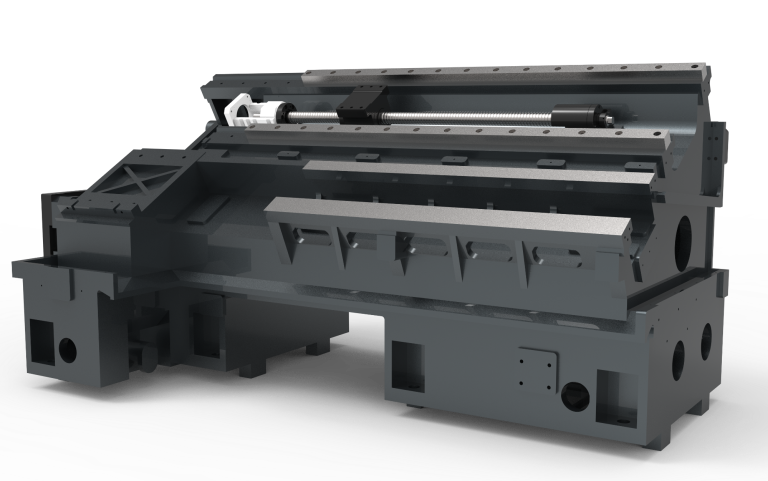

The main machine components are integrated into a strong and solid foundation, and the low-center-of-gravity machine body and the 30° positive slope design provide a very stable base for the spindle, tool tower, and tailstock. Using high-tension.
Meehanite cast iron, combined with a thermal flow design, can meet the needs of long-term processing use. Also, since the casting can provide larger vibration damping and reduce deformation, the machine tool is not only durable but also particularly outstanding performance.

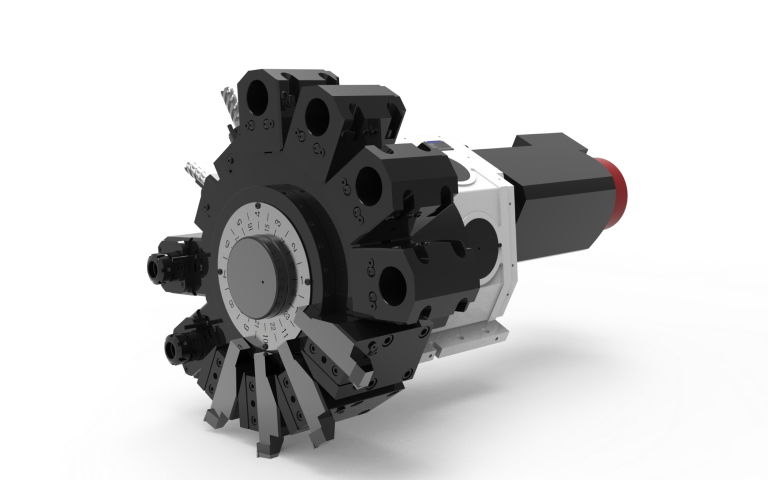

ADVANCED TURRET TECHNOLOGY
Use a high load servo motor for tool disc positioning during tool change. The tool change time for adjacent tools is only 0.2 seconds
Adopting ultra high precision curved gear clutch for precise positioning of the cutterhead, ensuring sufficient rigidity, stability, and durability of the cutterhead in any cutting situation.
Curved tooth clutch has advantages over traditional straight tooth clutch such as automatic centering, automatic cleaning, and large-area combination of tooth surfaces, and is widely used in BF Techno related products.
TZ Series Linear Guide CNC Lathe | High Precision + Strong Rigidity, Complex Workpieces Qualified in One Machining.
Addressing the processing pain points of traditional lathes, such as precision drift and low efficiency, to meet the precision turning needs of industries like automotive, energy, and general machinery.
TZ-320/500/750/1000Seires
TZ 320 Seires
Max.swing over bed:460mm
Max.turning diameter:360mm
Max.turning length:340mm
Spindle:A2-5
Spindle speed:4500rpm
TZ-500 Seires
Max.swing over bed:580mm
Max.turning diameter:450mm
Max.turning length:520mm
Spindle:A2-6
Spindle speed:4200rpm
TZ-750 Seires
Max.swing over bed:580mm
Max.turning diameter:560mm
Max.turning length:800mm
Spindle:A2-6
Spindle speed:2500rpm
TZ-1000 Seires
Max.swing over bed:680
Max.turning diameter:400mm
Max.turning length:900mm
Spindle:A2-8
Spindle speed:2500rpm
